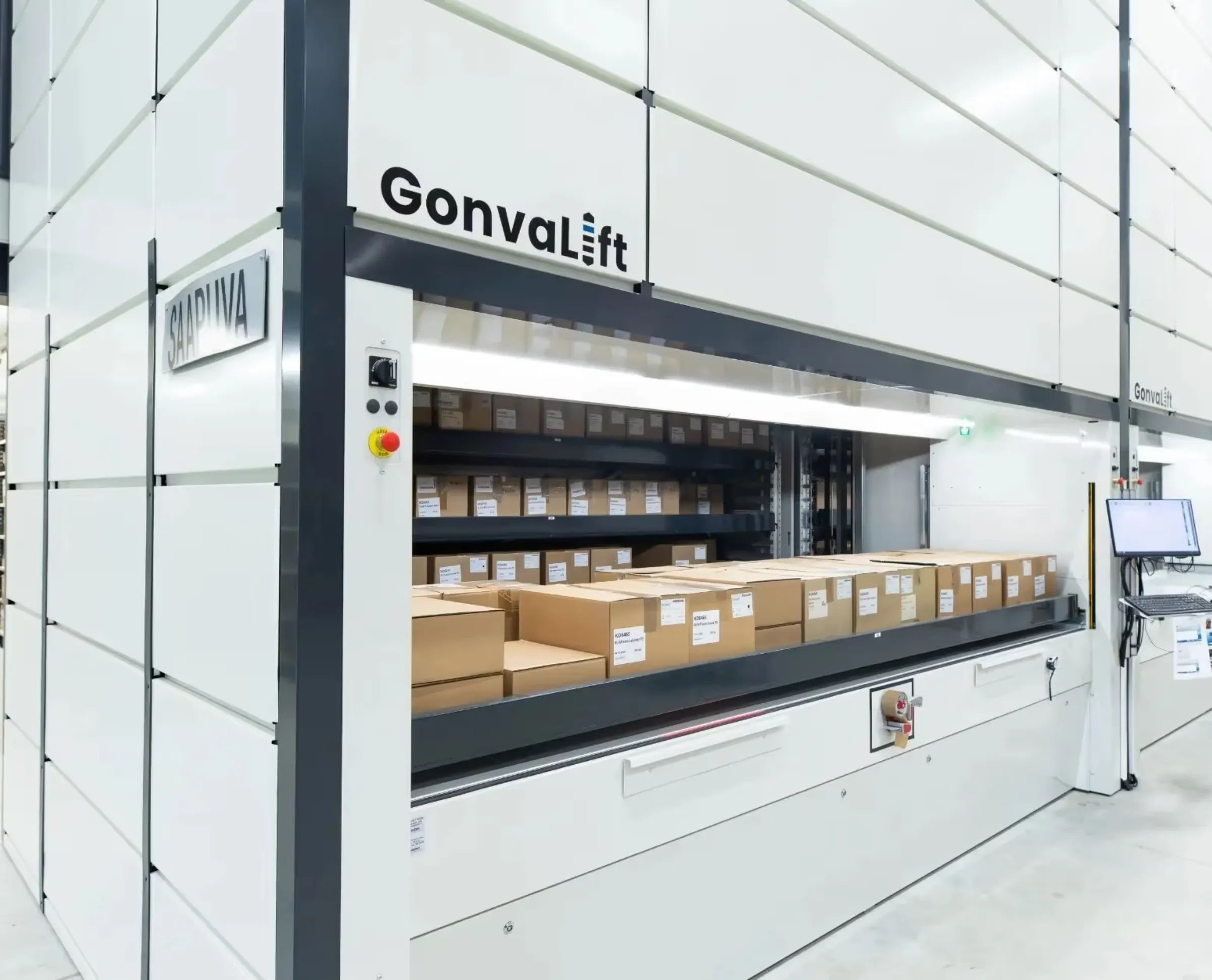

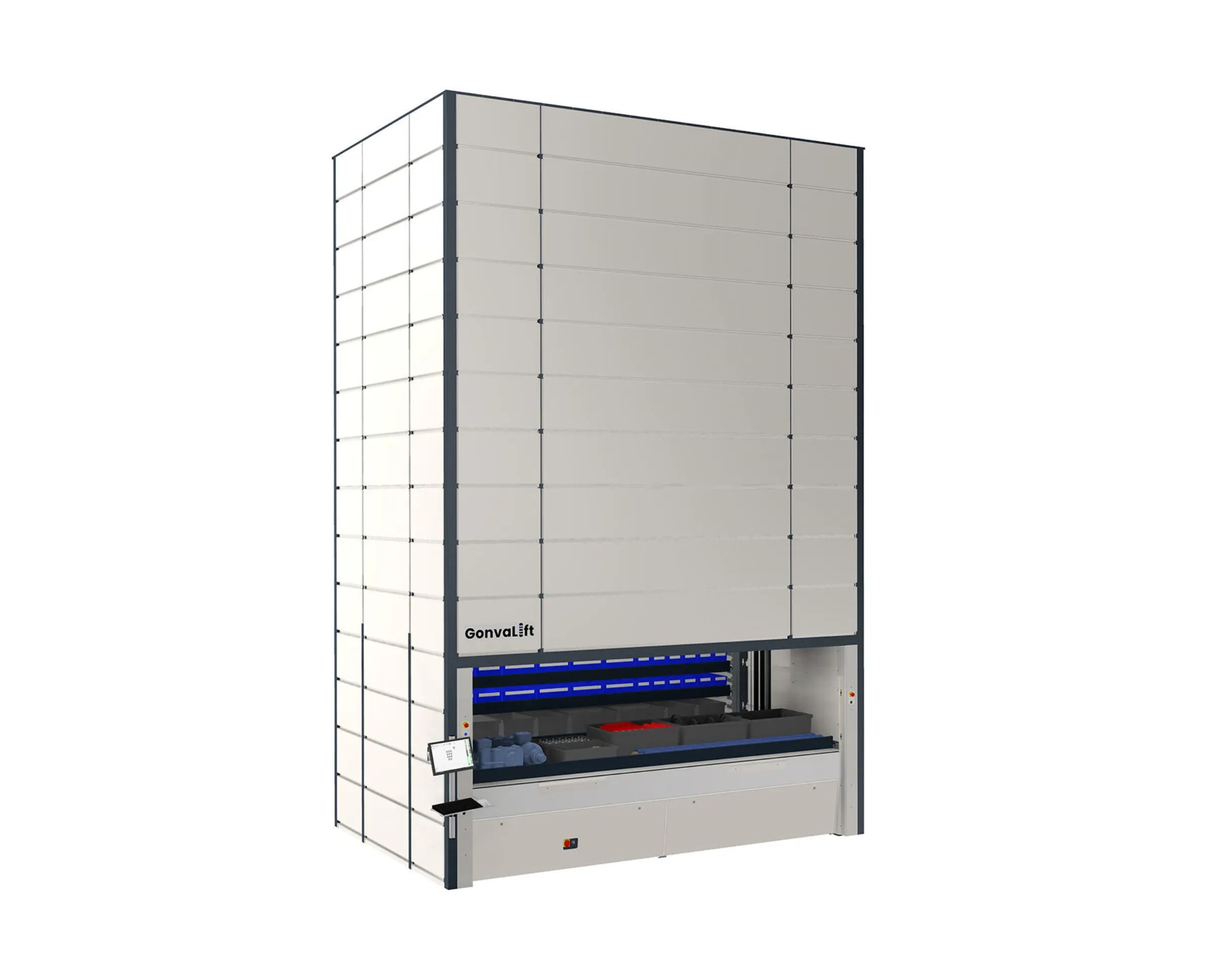

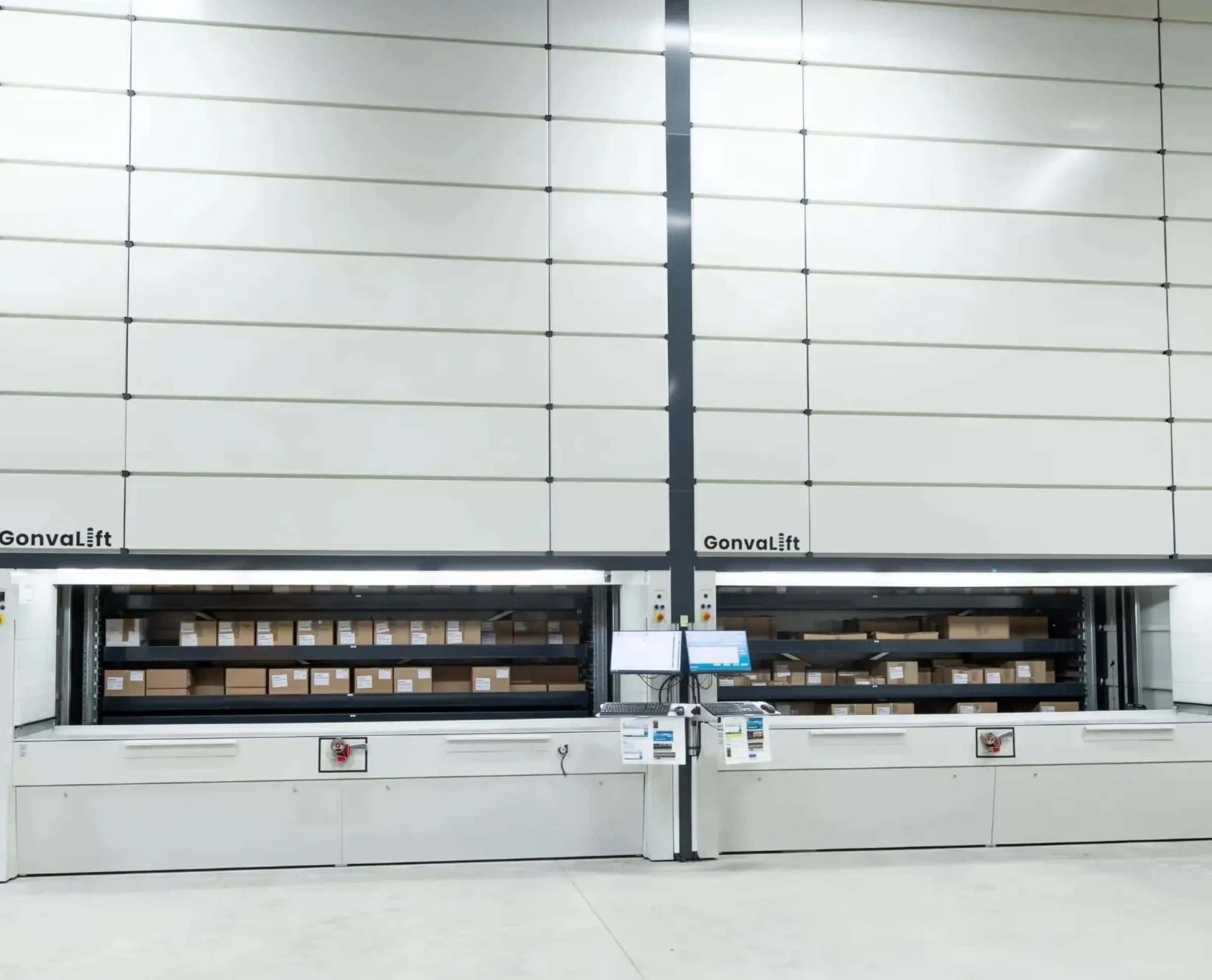

Kasten GonvaLift automatic warehouse truck
- Easy integration into an existing ERP system
- Excellent collection speed and accuracy
- First class security
- Total load capacity up to 60 t
- Two palette slots with access opening
Product description
Speed and efficiency based on speed zones, fast and quieter, combined with a two-pallet exchange system. Safety is first class thanks to speed zones, pallet locking, safety light curtains and emergency stop.
The storage machine has ample storage space due to the large pallets and can be optimised with 25 mm vertical accuracy. There is no wasted space and the storage dispenser allows both pre-locked pallet positions and flexible interchangeable positions. In addition, the pallet map can be easily modified whenever required by software without any mechanical work. The height of the warehouse can be utilised to an accuracy of 100 mm, so that the full height of the space can be utilised.

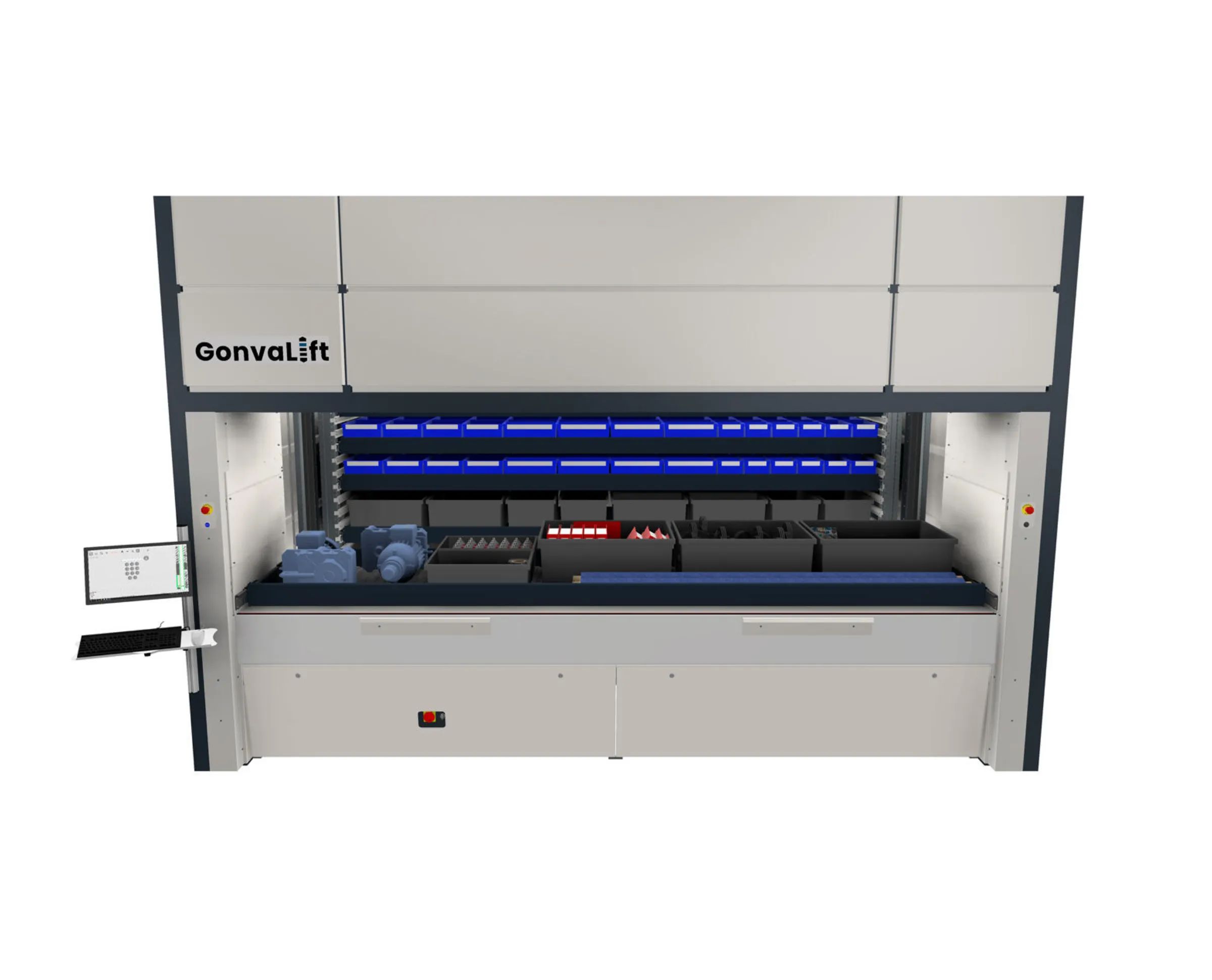

The drive opening has two pallet positions which, combined with the group picking offered by the Windows-based warehouse management system, provide an unbeatable combination for picking products. This combination takes efficiency to a new level when multiple orders are collected at the same time.
Product information
- Manufacturer Kasten
- Product Trail Home page Storageautomatic-warehouse-machines Kasten GonvaLift automatic warehouse truck
- Product group Automatic warehouse machines
- Product number kasten-gonvalift-varastoautomaatti
- Engine 8 kW
- Electricity flow 3-phase ,400 VAC, 16 A
- Width of the palette 4000 mm
- Depth of palette 820 mm
- Load capacity of the pallet 300 / 500 kg
- Load height 600 mm
- External dimensions (L x S) 4598 x 3140 mm
- Lift speed 500 kg pallet up to 1 m/s, 300 kg pallet up to 1,4 m/s
- Total sustainability 60 t
- Height 3000 - 12000 mm
