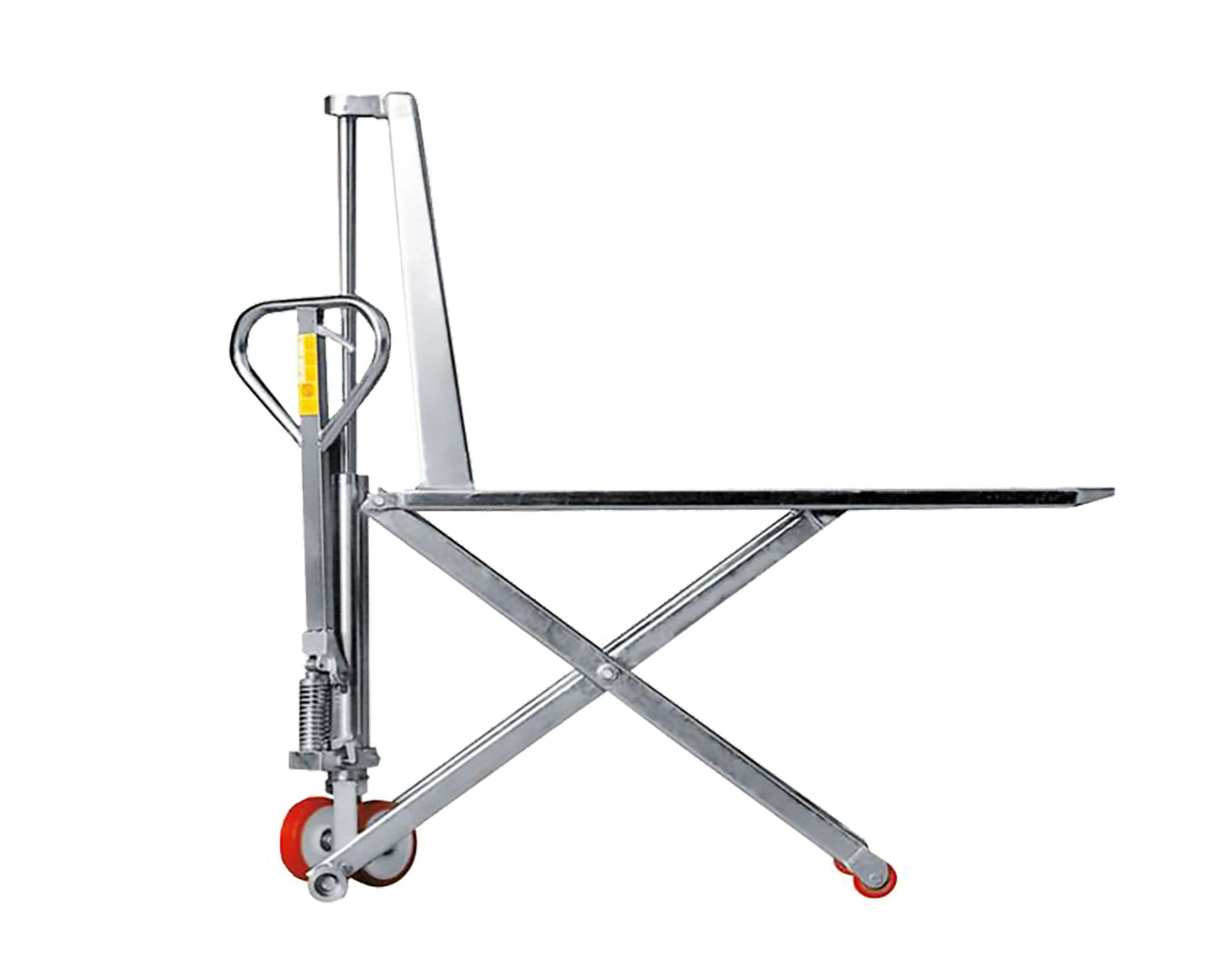

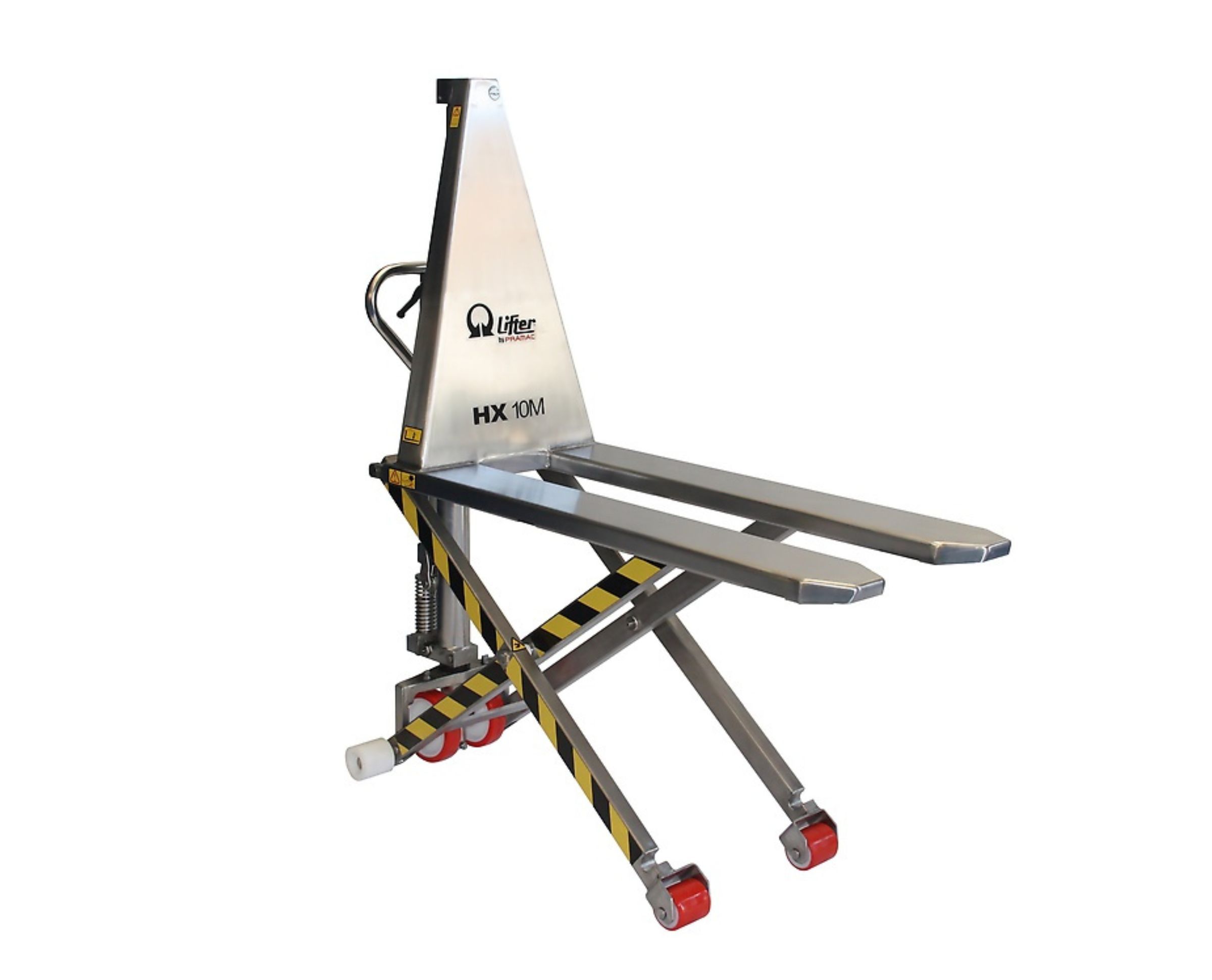

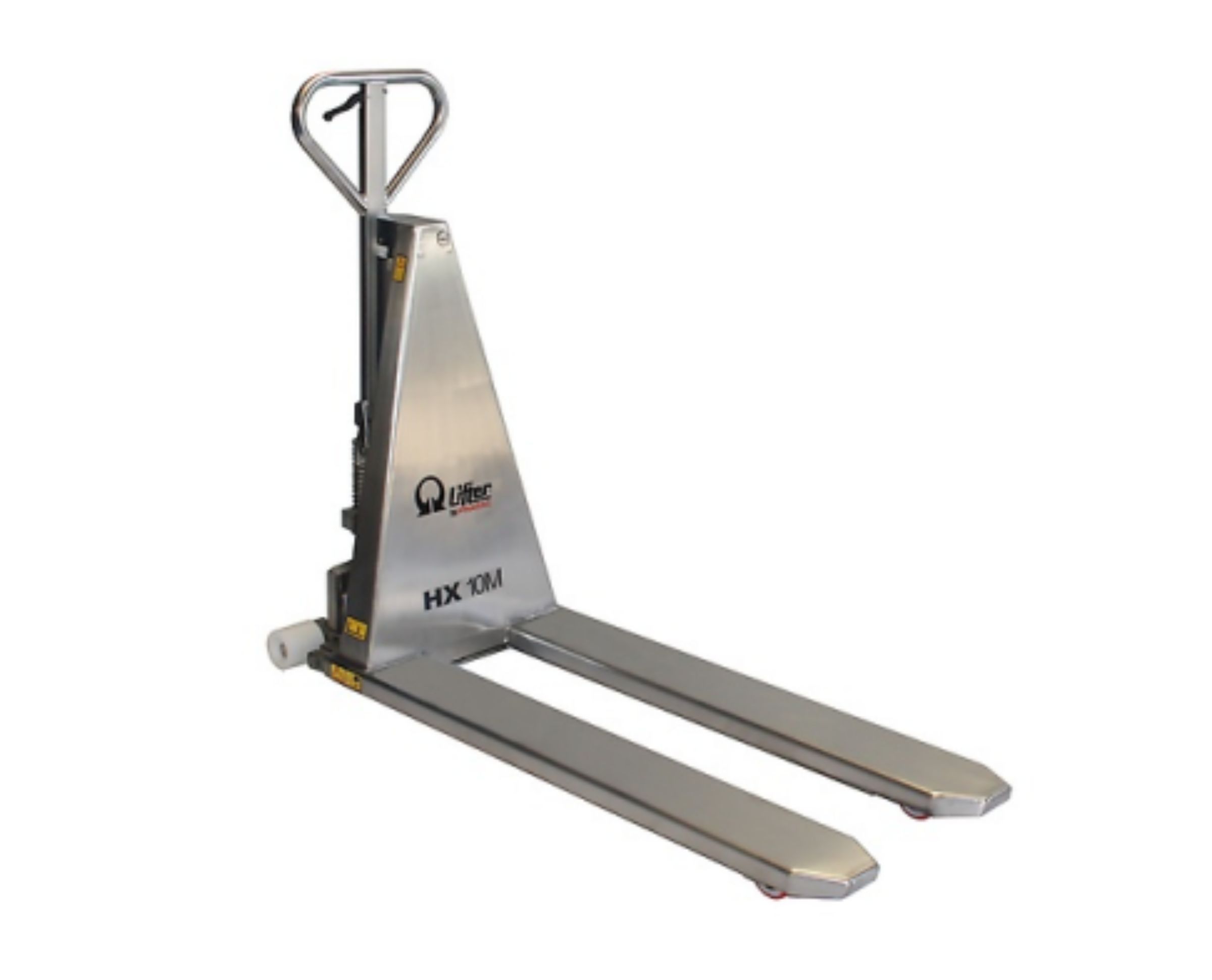

Pramac scissor lift HX10M INOX 1150X540 mm

The HX10M stainless steel forklift truck allows easy and light lifting to a height of 800 mm thanks to a reliable manual hydraulic pump that keeps the goods at the right height for picking/loading, reducing the operator's workload. Made entirely of AISI 304 stainless steel (including pump and piston), it is suitable for working in aggressive and corrosive environments where cleaning and hygiene are paramount values and where there are serious corrosion problems associated with the use of corrosive acids and salt solutions.

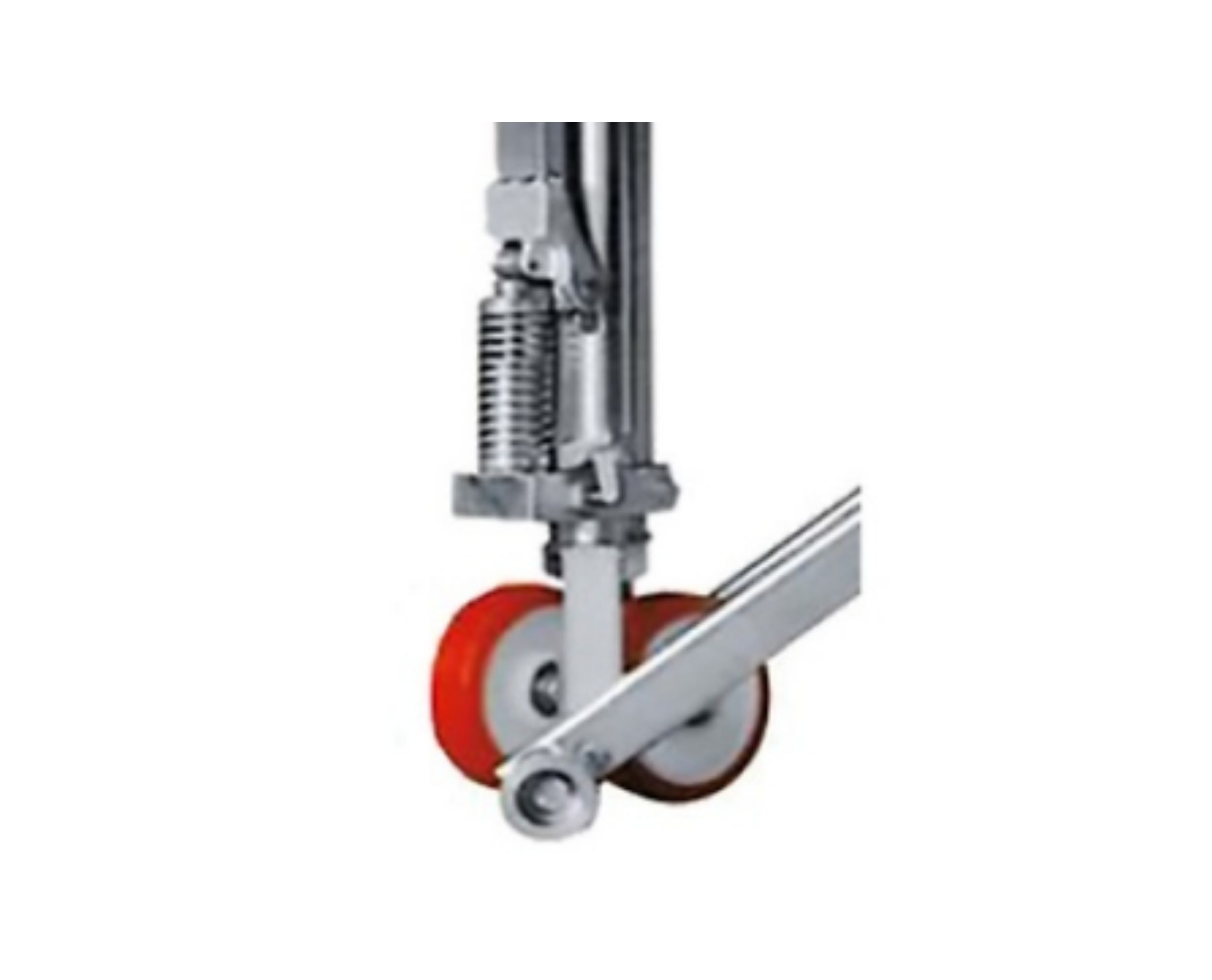

Hydraulic unit

Durable and reliable one-piece stainless steel pump.

Lifting stroke:

Monopiston-type, ensuring maximum stability even with heavy loads and ensuring excellent reliability.

Maximum pressure valve:

Safety device to protect the forklift from overloading. When the pressure in the hydraulic circuit exceeds the set calibration value at the maximum rated flow, the valve automatically locks the forks.

Rear stabilisers

The steering arm allows access to the closed side of the pallet with a small lift, facilitating successive handling operations. In addition, machine stability is achieved by using the load roll in a more advanced position. Work is stable and safe thanks to the rear stabilisers, even when the working height exceeds 400 mm and for heavy loads.

Stainless steel

AISI 304 stainless steel, electropolished sealed waterproof bearings and polyamide bushings make the HX10M INOX comply with food industry regulations. It is the ideal and clean solution for handling in the agricultural, chemical and pharmaceutical industries. It is corrosion-resistant, easy to use and ergonomic, and is built to withstand regular high-pressure washing and disinfection to meet the most stringent hygiene requirements.
