Rear protection net for pallet rack

High quality rear fender nets are sturdy and easy to install. Rear protection mesh should be installed on every single-sided shelf that has passenger traffic behind it. This prevents goods from falling behind the shelf when the shelf is accessed from the other side. The end of double-sided shelves should also be fitted with a safety net if there is traffic on the side of the shelves.

A net fitted to the end of the shelf prevents goods from falling from the end of the shelf row. The net acts as a fall protection, preventing goods from falling to the rear of the shelf and preventing personal injury and damage to property.

Protective nets are installed at the desired width and height.

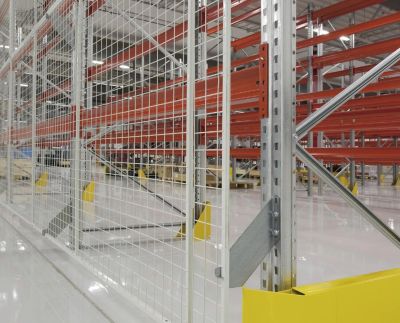

The elements are fixed to the shelf uprights with brackets. The brackets are available in different lengths, painted and galvanised. The mesh elements are fixed together vertically with screws. The top edge of the first row and the bottom edge of the lowest row are fixed with splicing forks.

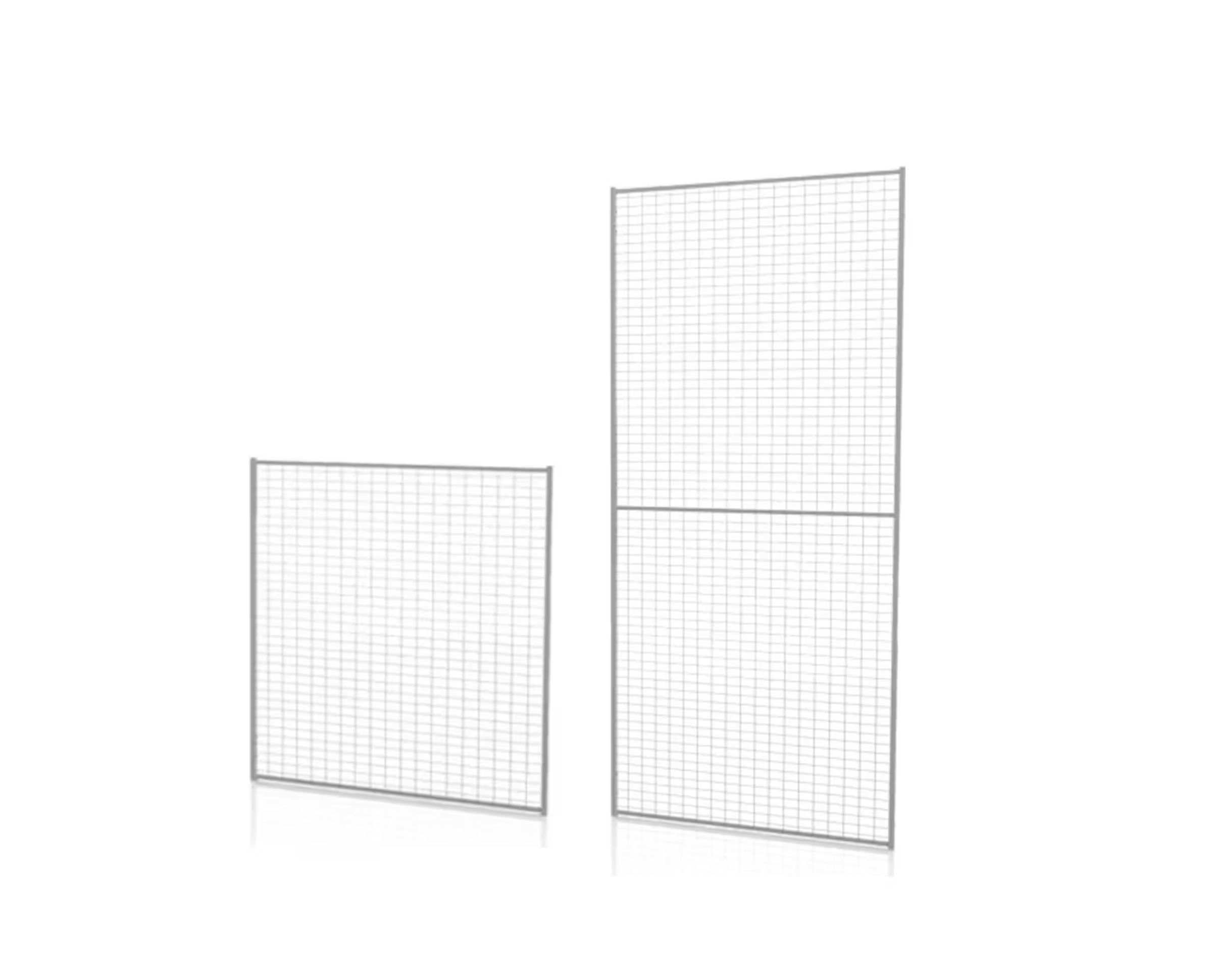

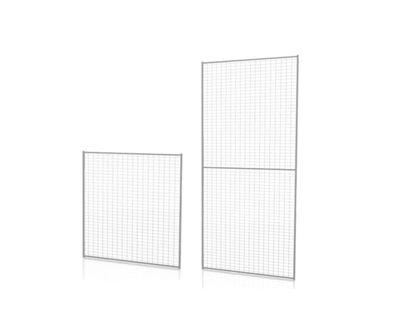

Two panel widths: 2200 and 1100 mm.

Light grey RAL 9018.

Mesh size 60 x 50 mm.

Horizontal tubes: 15 x 15 mm

Vertical tubes: 19 x 19 mm

Horizontal wires: 2,5 mm

Vertical wires: 3 mm

Standard bracket: 150 mm, galvanised

Epoxy painted finish.
