Several options

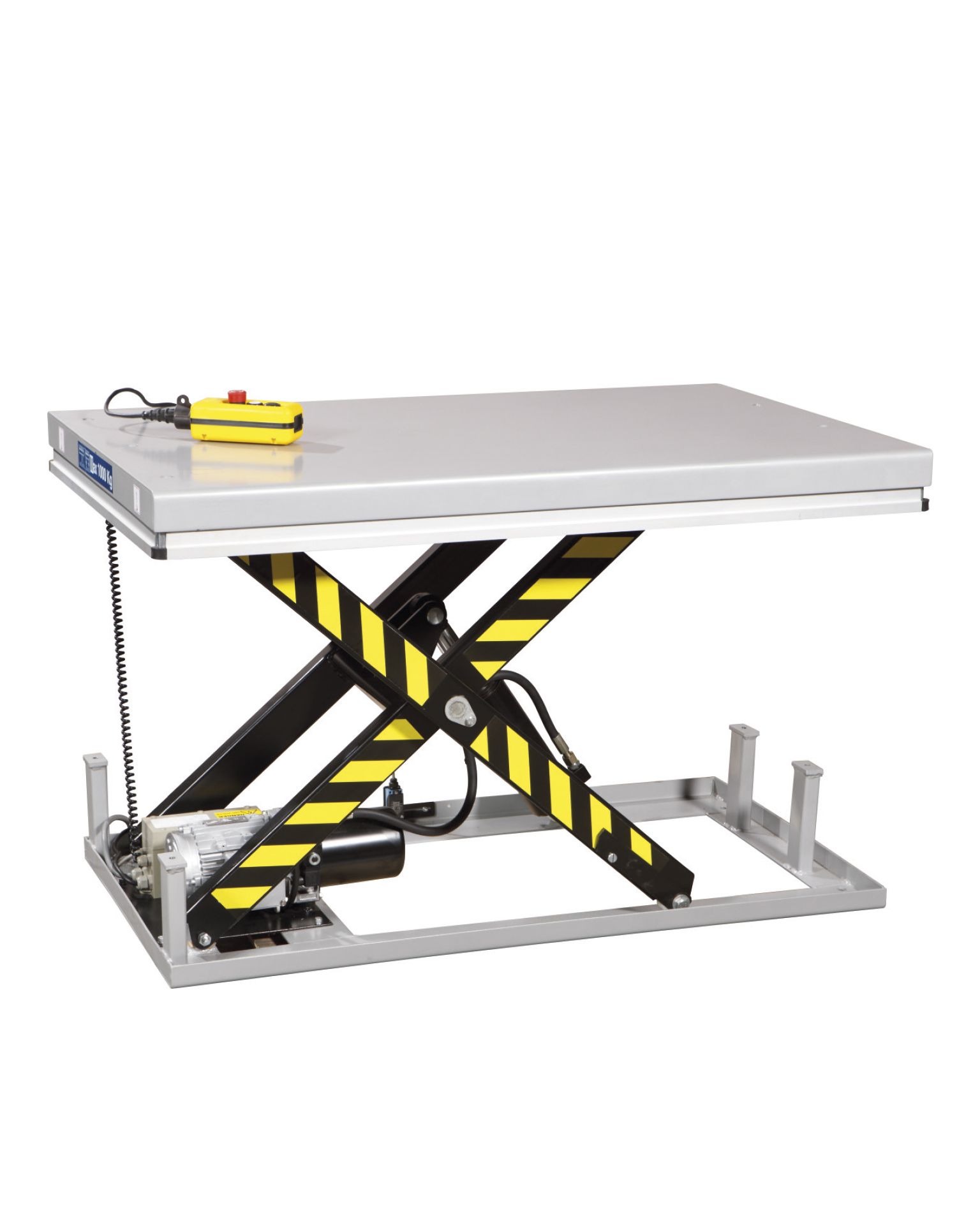

Scissor lift table HW4002 2000 x 1200 mm lifting capacity 4000 kg

Product number: 7020-151

High-quality scissor lift tables for lifting heavy loads, e.g. in service stations, manufacturing industry and warehouses. Scissor arms in thick steel profile with wide safety gaps. Maintenance-free pin rollers on scissor joints.

Dead weight 405 kg
Lifting capacity 4000 kg
Lifting height 240 - 1050 mm
Lifting time 30 - 40 sec
Structure height 240 mm

$ 5077.80

Product on order, delivery 2-4 weeks

Warehouse collection, Postnord, Kaukokiito - Freight

Invoice, online payments, cards, MobilePay

Product description

The high quality HW4002 scissor lift table is ideal for lifting heavy loads in industry, warehouses and shops. The 2-cylinder lift table lifts loads with a lifting capacity of 4000 kg. Scissor arms in thick steel profile with wide safety gaps. Maintenance-free pin rollers on scissor joints. A safety valve prevents the liquid level from dropping in case of hose damage and a by-pass valve protects against overloading. Emergency stop switch on the controller for added safety.

Electric motor 380 V / 16 Ah, 3-phase, with safety cut-out.

Note: An electrician is required to install the lifting table.

Product information

Delivery room Product on order, delivery 2-4 weeks
Manufacturer Silverstone
Product Trail Home page Transport and Lifting Lift tables Electro-hydraulic Scissor lift table HW4002 2000 x 1200 mm lifting capacity 4000 kg
Product group Electro-hydraulic
Product number 7020-151
Level dimension 2000 x 1200 mm
Maximum load 4000 kg
Elevation 300 - 1400 mm
Purchase rate 25 - 30 s
Lifting method Electric
Lifting engine 380V / 50HZ 2,2 kW
Weight 405 kg
Material from Steel
Certificates CE, EN 1570-1
