Low U lifting table 1000 kg platform size 1350 x 1080 mm

Electro-hydraulic lifting table with 1000 kg lifting capacity. Multi-purpose Edmolift scissor tables are reliable lifting tables for production, manufacturing and warehouses. Lifting is done by an electric motor. The C and T series lift tables have a motor power of 0.37 to 1.5 kW, depending on the model. The electrical system is IP54 rated. Overload protection and hose breakage protection increase safety.

A wide range of accessories is available for Edmolift lifting tables:

• Platform platform
• Wheeled platform
• Rectangular swivel plate
• Pallet platform with scales
• Ramp (TLC 1000)
• Guard rails and gates

The Edmolift low scissor lift 1000 kg is available in different platform sizes, from which you can choose the best option for your application:

TCL1000: Lifting capacity 1000 kg, lifting height 900 mm, construction height 80 mm. Platform dimensions 1350 x 800 mm.

TCL1000B: Lifting capacity 1000 kg, lift 900 mm, height of structure 80 mm. Platform dimensions 1350 x 1000 mm.

CCB1000: Lifting capacity 1000 kg, lift 720 mm, height of structure 80 mm. Platform dimensions 1500 x 800 mm.

CCB1000B: Lifting capacity 1000 kg, lift 800 mm, structural height 80 mm. Platform dimensions 1500 x 1000 mm.

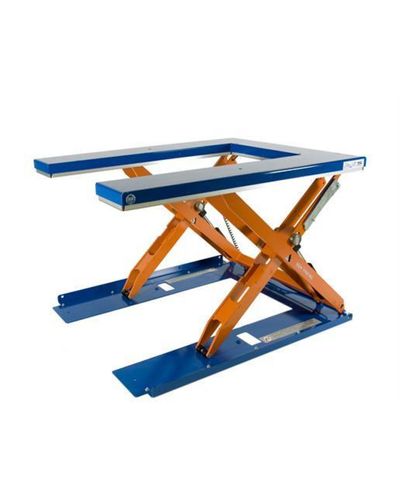

TUL1000: Lifting capacity 1000 kg, lift 820 mm, structural height 80 mm. Platform dimensions 1350 x 1080 mm.

CUB1000: Lifting capacity 1000 kg, lift 720 mm, structural height 80 mm. Platform dimensions 1450 x 1085 mm.
