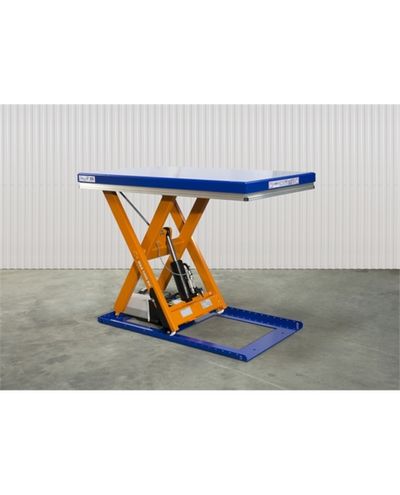

Single axle T-series lifting table 1000 kg platform size 1200 x 800 mm
Product number: TL1001B
Electro-hydraulic lifting table with lifting capacity 500-3000 kg. Multi-purpose Edmolift scissor tables are reliable lifting tables for production, manufacturing and warehouses. Lifting is done by an electric motor. The C and T series lift tables have a motor power of 0.37 - 1.5 kW, depending on the model. The electrical system is IP54 rated. Overload protection and hose breakage protection increase safety.
- Electro-hydraulic lifting
- Single axle T-series lifting tables
- Structure height 180 mm
$ 4509.88
Product on order, delivery 2-4 weeks
Product description
Product information
- Delivery room Product on order, delivery 2-4 weeks
- Manufacturer Edmolift
- Product Trail Home page Transport and LiftingLift tablesElectro-hydraulic Single axle T-series lifting table 1000 kg platform size 1200 x 800 mm
- Product group Electro-hydraulic
- Product number TL1001B
- Width 800 mm
- Length 1200 mm
- Level dimension 1200 x 800 mm
- Maximum load 1000 kg
- Purchase rate 15 s
- Lifting engine 0,95 kW
- Weight 180 kg
- Nostoliike 820 mm
- Material from Steel
- Certificates CE, EN 1570-1
